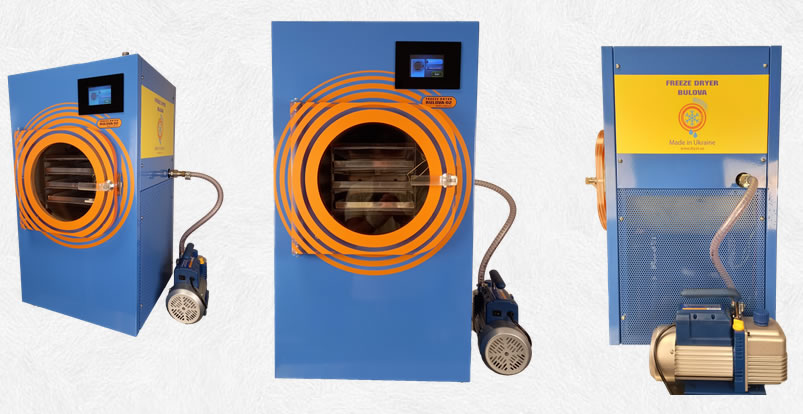

Freeze dryer (lyophilizer) “Bulova 02”
Laboratory Freeze Dryer Bulova 02 designed for small laboratories and home use.
Maximum loaded product weight 2 Kg/cycle
tray area: 1776 cm²
Tray volume: 2131 cm³Working vacuum depth 15-180 Pa
Sublimator surface temperature, max. minus -40С°
Shelf temperature, max. + 60С°
Mass of storage ice 1,86 kg/cycle.
Number of shelves for raw materials – 3
Process cycle time 24-48 hours
Power consumption of all devices and units 1,3 kW/h., established: 2.0 kW/h.
Supply voltage 220-230 volt with ground
Weight no more 70 Kg
Operating temperature 10C° – 30С°
Maximum noise level 75 dB
Freon R-410a
Frame consists of several panels, from which the anterior and posterior walls are formed, cover and base. Made from thick sheet metal 0.8-1 mm and powder coated. Panels are connected to each other with screws.
Dryer Bulova 02A, Bulova 02DA is made from ASCI-304 stainless steel sheet.
drying chamber is a hollow cylinder made of ASCI-304 food grade stainless steel, equipped with a front door made of organic glass. Silicone seamless ring acts as a sealing element. The doors have a handle with a latch. Necessary branch pipes and fasteners are welded to the cylinder.
Vacuum pump It is an integral part, equipped with two 2-stage rotary vane pumps. Operates at absolute pressure 15 Pa.
Refrigeration unit consists of a low temperature compressor , evaporation part, devices that ensure their operation and regulation.
Connecting and shutoff valves – standard, used for vacuum devices.
control controller – microprocessor controlled electronic device, 7” color display and software. Allows you to maintain the desired drying parameters and drying modes, dryer control.
Shelves are a 4-tier construction of flat elements, made from food grade aluminum, to the bottom of which an electric heater is attached. On the surface of which trays with the drying product are installed. Heat from the shelves is transferred to the product by conduction and thermoradiation..
Contents of delivery:
1. Complete dryer
2. Block of shelves
3. Product trays 3-pcs.
4. Vacuum pump (pump block)
5. vacuum hose
6. User manual (the passport)
7. Package
8. Vacuum oil VM-4
9. Bulova 02D and Bulova 02DA are equipped with a remote control unit via the application
Optional ASCI stainless steel product trays 430.
